Disposable
In-Line Filters |
|
Sealed
In-Line Filters |
|
In-line
filters are designed to reduce unpleasant tastes
and odors, as well as chlorine. But the best part is that they
require no tools for easy installation or removal. Just one
"click" and it's sealed. Spring loaded with automatic
shut-off.
All in-line filters
are designed for 6 month use.
|

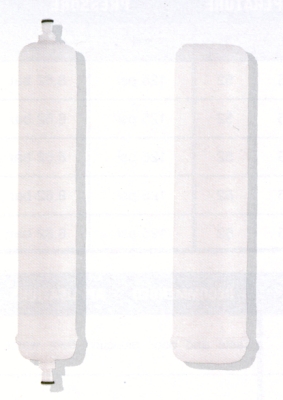

IC-101
(Shown)
Give your customers clean, sparkling fresh, filtered ice
cubes, while giving yourself the benefits of AMETEK's
quick disconnect positive seal filters with 1/4"
NPT.
|
|
IL
501 (Shown)
Large diameter, high capacity In-line version of the IC-101, available
with no fittings for use as post RO filtration and other OEM applications
with 1/4" NPT. Flow rate up to 1 GPM for In-line undersink
and food service applications. |
SC-101
Phosphate-feeding, scale-reducing cartridge is available in bulk
with no fittings. The body style is the same as the IC-101 and
TS-101. The SC-101 has a flow rate up to .75 GPM. 1/4" NPT.
(Contains phosphate only). |
|
TS-101,
TS-501
All Ametek In-line filters are fully injection molded with a
125 psi pressure rating* - more durable than anything you'll
find on the market today. Prevents scaling and reduces undesirable
tastes and odors caused by chlorine. Perfect for food service
applications.
Connections are 1/4" FPT and contain carbon and phosphate
crystals. TS-101 series is available for residential
use, and the TS-501 series for larger or commercial applications.
* As
tested in accordance with NSF Standard #42 for permanent pressure
vessels.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Whenever
you see me you will find a PDF file. Click here to download
the latest Adobe Acrobat Reader
|
|

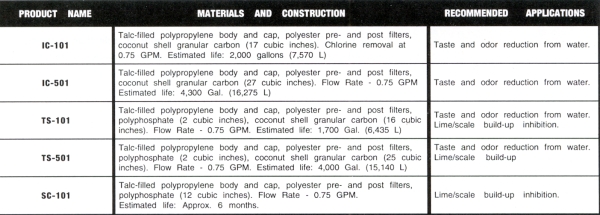

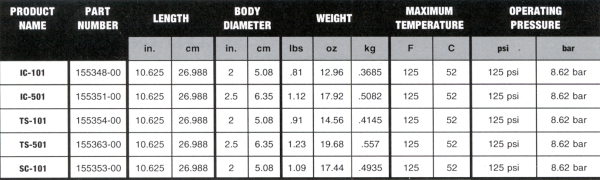

Specifications
- Click chart to enlarge
|
|
|
WARNING:
For drinking water applications, do not use water that is microbiologically
unsafe or of unknown quality without adequate disinfection before or after
the unit. |
NOTE:
The granular activated carbon cartridges may contain a very small amount
of carbon fines (very fine black powder) and a new cartridge after installation
should be flushed with sufficient water to remove all traces of the fines
from your water system before using the water. Each time you use your filtered
water tap for drinking or cooking purposes, it is recommended that you run
(flush) the tap for at least 10 seconds prior to using the water. This is
particularly important if the water tap has not been used daily. |
NOTE:
All materials of construction are FDA-compliant or NSF Standard 61 listed. |
|
