Clear Filter Housings
Optional Pressure Relief/Bleed Button is located on inlet side of cap. See 3/4" and VIH Housings for construction and operation.
CAUTION: Clear Housings may crack or craze with time causing failure and leakage, if exposed to organic solvents such as those found in aerosol sprays for cleaning products and insecticides

Applications:

  • Food Processing
  • Vending Equipment
  • Food Service
  • Main Line Residential Water
  • Lab Equipment
  • Photographic
  • Flow Sight Indicators

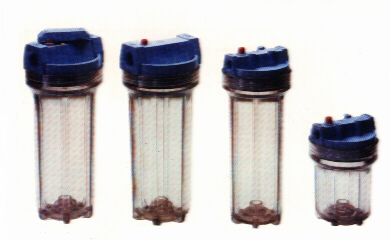

The housing bodies are manufactured of clear FDA Styrene-Acrilonitrile 'SAN) which has been stress relieved for added clarity and strength. A variety of reinforced polypropylene caps are manufactured to best meet your needs. Housings are sealed with top seated 241 and 237 Buna-N 0-rings and Acme square thread closure for service reliability. Clear bodies offer on site examination of flow, cartridge performance and life. The SAN/polypropylene construction combination has excellent chemical compatibility. (See chart for specific applications).

Two styles of clear housings are available; Standard 3/4" (19 mm) and Slim Line™ . Standard Housings are of a thick walled construction with 3/ 4" (19 mm) I/O for medium to heavy applications. The standard body style (#10 length) is available with either the Mounting Bracket or Valve-in-Head style cap, to best meet your needs. Slim Line Housings are smaller in diameter for more compact installations. They are available with 3/8" (9.5 mm) and 1/4" (6.4 mm) connections for medium to light duty applications. Two body lengths are available: Slim Line #10 and #5.

Body lengths and flow rate sizing 1 to 15 GPM (4 to 57 LPM)

  • #10 Standard housings take a 9 3/4" to 9 7/8" (248 to 251mm) long cartridge with flow rates of 1 to 10 GPM (4 to 38 LPM).
  • #20 Slim Line housings take a 20" to 20 1/8" (508 to 511mm) long cartridge with flow rates of 1 to 15 GPM (4 to 57 LPM).
  • #10 Slim Line housings take a 9 3/4" to 9 7/8" (248 to 251mm) long cartridge with flow rates of 1 to 7.5 GPM (4 to 28 LPM).
  • #5 Slim Line housings take a 4 7/8" (124mm) long cartridge with flow rates of 1 to 5 GPM (4 to 19 LPM).

MAXIMUM PRESSURE: 125 psi (8.62 bar)
MAXIMUM TEMPERATURE: 125ºF (52ºC)



Dimensions:

#10 ViH: 12 7/8" by 5 1/4" (327 by 130mm), 2.75 lbs. (1.3 kg)
#10 Std: 12 5/8" by 5 1/4" (321 by 133mm), 2.66 lbs. (1.2 kg)
#10 SL: 12 1/8" by 4 5/8" (308 by 118mm), 2.00 lbs. (0.9 kg)
#5 SL: 7 3/8" by 4 5/8" (187 by 118mm), 1.41 lbs. (0.6 kg)
