Slim Line™ Black Housings

 1/4" Housings

 3/8" Housings

 1/2" Housings

 3/4" Housings

 1" Housings

 1-1/2" Housings
FDA Grade
Slim vessel design reduces space required for installation without sacrificing capacity
200 psi rated, steam sterilizable
Designed for use with Resin-Bonded cartridges in dry cleaning, hydrocarbon, solvent and alkali applications
Designed for use as 200 psi Reverse Osmosis Membrane Vessels (Modification for brine port required)
* Avoid use with Ketones.

Applications:

  • High Pressure R.O.
  • Toluene/Xylene
  • Hydraulic Oil
  • Food Processing
  • Gasoline
  • Photographic Needs
  • Paints/Inks
  • Boiler Feedwater
  • Alcohols

The Black Slim Line™ housings are manufactured from nylon which is reinforced with long glass fibers. Manufacturing the housings in this fashion increases strength and durability making them an ideal choice for various high pressure and corrosive applications*.

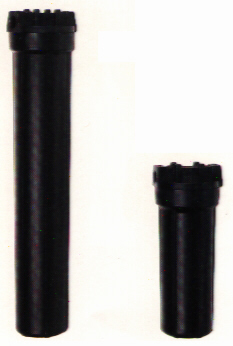

Sealing is achieved through the use of a #237 silicone 0-ring (not included). Caps are molded with 1/2" (12.7 mm) inlet/outlet ports. Slim Line housings are available in two lengths: 10" and 20" (254 and 508 mm), with top-mount heads (no-pressure relief).

NOTE: Fluoroelastomer, silicone, and Buna-N 0-rings sold separately.

Two lengths available for flow rates to 20 GPM (76 LPM)

  • #20 Black Slim Line takes a 20" to 201/8" (508 to 511 mm) cartridge with flow rates of 1 to 20 GPM (4 to 76 LPM).
  • #10 Black Slim Line takes a 9 3/4" to 9 7/8" (248 to 251 mm) cartridge with flow rates of 1 to 10 GPM (4 to 38 LPM).

MAXIMUM PRESSURE: 200 psi (13.8 bar)
MAXIMUM TEMPERATURE: 200ºF (93.3ºC)


 Dimensions:

#20 SLIM LINE BLACK: 21 7/8" by 4 3/8" (556 by 111 mm)
#10 SLIM LINE BLACK: 11 3/4" by 4 3/8" (299 by 111 mm)
