Slim Line® Filter Housings

Pentek Slim Line Filter Housings

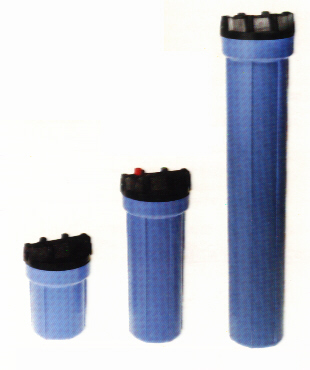

Slim Line® Filter Housings are available reinforced polypropylene or clear Styrene-Acrylonitrile (SAN) in 5", 10", and 20" lengths. The black or blue reinforced polypropylene housing caps are available with 1/4", 3/8" or 1/2" NPT connections. Four bosses are molded into every cap for mounting purposes.

Slim Line® Filter Housings are an excellent choice for low-flow applications and when space and chemical compatibility are primary concerns.

  • Slim design reduces space required for installation without sacrificing capacity
  • Available in 5", 10" and 20" lengths
  • FDA Grade
  • Leak-proof seal with top-seated o-ring
  • Optional pressure relief/bleed button on inlet side of cap
  • Available with clear or opaque sumps

Adobe PDF File Product Brochure

Order Online
  • Low Flow OEM Equipment
  • Food Service Equipment
  • Kidney Dialysis Equipment
  • Temperature Control Valves
  • Recreational Vehicles
  • Residential R.O. Systems
  • Humidifying Systems

Body lengths and flow rate sizing 1 to 15 GPM (4 to 57 LPM)

  • #5 Slim Line housings take a 4 7/8" (124mm) long cartridge with flow rates of 1 to 5 GPM (4 to 19 LPM)
  • #5 SL: 7" by 4 3/8" (178 by 111mm), 1.16 lbs. (0.5 kg)
  • #10 Standard housings take a 9 3/4" to 9 7/8" (248 to 251mm) long cartridge with flow rates of 1 to 10 GPM (4 to 38 LPM)
  • #10 Slim Line housings take a 9 3/4" to 9 7/8" (248 to 251mm) long cartridge with flow rates of 1 to 7.5 GPM (4 to 28 LPM)
  • #10 SL: 11 3/4" by 4 3/8" (299 by 111mm), 1.69 lbs. (0.8 kg)
  • #20 Slim Line housings take a 20" to 20 1/8" (508 to 511mm) long cartridge with flow rates of 1 to 15 GPM (4 to 57 LPM)
  • #20 SL: 21 7/8" by 4 3/8" (556 by 111mm), 3.31 lbs. (1.5 kg)

MAXIMUM PRESSURE: 125 psi (8.62 bar)
MAXIMUM TEMPERATURE: 125ºF (52ºC)

NSF

The 158005, 158006, 158114, 158115, 158120, 158125, 158126, 158128, 158129, 158131, 158149, 158195, 158196, 158204, and 158205 are Tested and Certified by NSF International to NSF/ANSI Standard 42 for material and structural integrity requirements.
