Side
Mounted Level Switch ES15-650-PP
Series
15 Product Group
|
|
This value packed
switch serves equipment OEMs throughout the world. From film
processors to chillers and cooling towers, this is the quintessential
switch - the simple, inexpensive solution to small tank level
sensing problems. |
| Side
Mounted Level Switches |
|
|

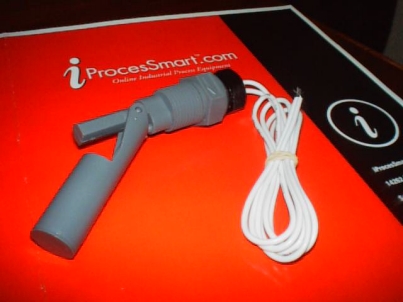

 ES15-650-PP
Side Mounted Level Switch

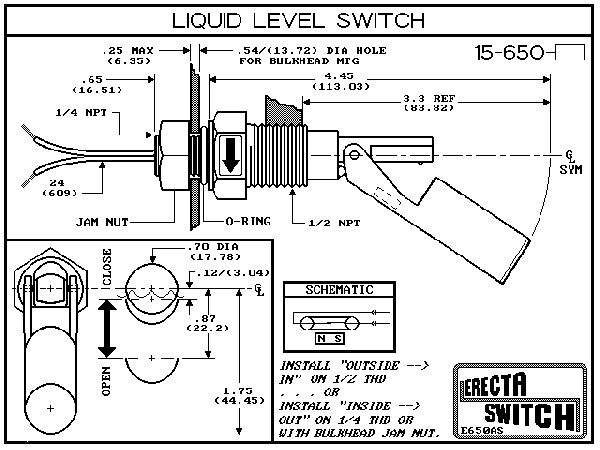

The ES15-650-PP
miniature side mounted liquid level switch is the primary
switching element of the ERECTA SWITCH Series 15 product group.
It has centerline symetrical design with 1/2" NPT thread
intended for "outside" —> "in"
mounting. In such mounting, the available 1/4" thread
may be useful in connecting ERECTA SWITCH wiring receptacles,
audible alarms, and conduit fittings. The 1/4" thread
is useful for "inside" —> "out"
mounting using the O-ring seal and jam nut provided. This
pilot load switching device is recognized by the UL component
recognition program. It is a single-pole, single-throw switch
which can be configured to perform either normally open or
normally closed function.
|
| ORDERING
INFORMATION |
|
|
Erecta Switch ES15-650-PP
Polypropylene Side Mount Level Switch |
|
|
|
Erecta Switch ES15-650-AC
Side Mount Acetyl Level Switch |
|
|
|
Erecta Switch ES15-650-KR
Side Mount Kynar Level Switch |
|
|
|
|
| ELECTRICAL
RATINGS |
| Contact
rating |
0.8
AMP, 120V, 60 Hz, Resistive
0.4 AMP, 240V, 60 Hz, Resistive
3.36 VA, 240V, 60 Hz
Pilot Duty |
| DC |
1
AMP Max @ 24 VDC Resistive |
| APPLICATION
ENVIRONMENT |
| Pressure
(Hollow Float) |
50
PSI MAX @ 20°C |
Derate,
Zero @ 90°C |
| Temperature |
90°C
MAX |
---
|
| Specific
Gravity |
0.8
MIN |
Clear
Liquid |
| Position
Extreme |
15°
Cant MAX |
Off
Vertical |
| MATERIALS
OF CONSTRUCTION |
| All
Models [PP] |
Polypropylene
(Gray) |
| All
Models [AC] |
Acetal
(Red) |
| All
Models [KR] |
Kynar,
PVDF (Natural) |
|
| |
| |
|
|
|
| |
| |
