THERMOCOUPLES
Adjustable Bayonet

RTD Sensaors

Style AA Armor Adjustable Bayonet Thermocouple for the Plastics Industry

  • Types J and K thermocouples for use up to 900°F (482°C) based on insulation type
  • Type T thermocouple for use up to 700°F (371°C) based on insulation type
  • Stainless steel sheath material
  • 3/16” probe diameter is industry standard (1/8” and 1/4” optional)

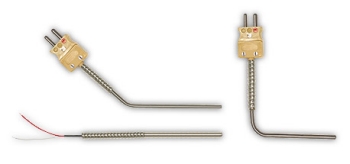

Style BC Rigid Compression Bayonet Thermocouple for the Plastics Industry

  • Types J and K thermocouples for use up to 900°F (482°C) based on insulation type
  • Type T thermocouple for use up to 700°F (371°C) based on insulation type
  • Stainless steel sheath material
  • 3/16” probe diameter is industry standard (1/8” and 1/4” optional)
  • Compression fitting not included

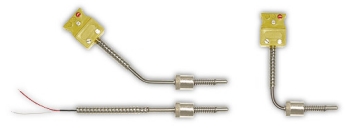

Style BT Rigid Bayonet Thermocouple for the Plastics Industry

Types J and K thermocouples for use up to 900°F (482°C) based on insulation type
Type T thermocouple for use up to 700°F (371°C) based on insulation type
Stainless steel sheath material
3/16” probe diameter is industry standard (1/8” and 1/4” optional)

Style SA Spring Adjustable Bayonet Thermocouple for the Plastics Industry

  • Types J and K thermocouples for use up to 900°F (482°C) based on insulation type
  • Type T thermocouple for use up to 700°F (371°C) based on insulation type
  • Stainless steel sheath material
  • 3/16” probe diameter is industry standard (1/8” and 1/4” optional)
  • 12” spring


Part Number Description Price
TH AB-A-72-SCL Model AB - Type J Adjustable Bayonet with Armor 72" $38.90
TH AB-A-96-SCL Model AB - Type J Adjustable Bayonet with Armor 96" $43.70
TH AB-S-72-SCL Model AB - Type J Adjustable Bayonet with Spring 72" $32.82
TH AB-S-96-SCL Model AB - Type J Adjustable Bayonet with Spring 96" $36.93
