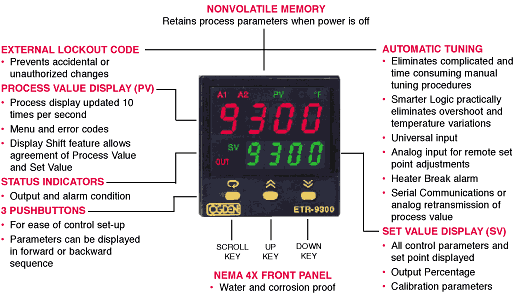

ETR-9300 1/16 DIN Microprocessor Based Smarter Logic™ Temperature Control

48mm x 48mm - Smarter Logic for Superior Control - NEMA 4X/IP65 Front Panel - Universal Sensor Input - Analog Input for Remote Set Point Adjustment - Second Set Point - Loop Break Alarm - Heater Break Alarm - Auxiliary 20VDC/25mA Power Supply - 10 per Second Sample Rate - 18 bit A/D Converter Digital Communications - Bumpless Transfer - UL / cUL, CSA , CE Agency Approvals - 3 Year Warranty


The ETR-9300 with Smarter Logic offers extensive features that are rarely available on a 1/16 DIN control. With universal input, all thermocouple, RTD, voltage and current types can be selected from the front panel. A universal power supply along with a low voltage input option provides a wide operating range. An analog input allows the set point to be remotely adjusted. When the current drops below a specified minimum, an alarm condition signals a heater failure. Should a sensor break, a smooth, bumpless transfer is produced from automatic to manual control to restrict a drastic, possibly damaging change in output. Programmable secondary outputs provide a wide range of variations. Proportional cooling, latching and band alarms are among the many possible functions of the secondary outputs. Remote networking of multiple controls is available with the serial communications feature. An analog signal retransmits the process value to a chart recorder, data logger or PLC. The ETR-9300's front panel is NEMA 4X/IP65 rated for harsh environments and for applications requiring washing with a direct spray. The panel depth is only 3". OGDEN offers the best value on the most advanced features.

ETR-9300

ETR-9200 Temperature Controller - (OBSOLETE)

The ETR-9200 1/16 DIN Temperature Control uses Smarter Logic technology for control accuracy with virtually no initial overshoot or temperature variations. Programmable secondary outputs can provide proportional cooling, latching alarms and band alarms among many possible functions. The serial communications feature provides networking capabilities. A NEMA 4x/IP65 front panel is featured. With the Universal Input this Smarter Logic ETR Temperature Control can accept a variety of sensors or other sources. A Universal Power Supply and °F or °C display are among additional features. Even with all this, the ETR-9200 still manages to come with a great price and immediate delivery.
View Instruction Manual for the Ogden ETR 9200 Controller
