WRAP AROUND DRUM HEATERS

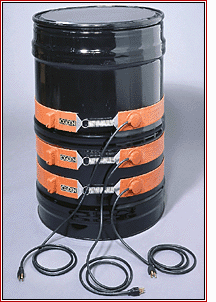

When liquids are stored in drums or pails, maintaining a viscosity or certain temperature is often necessary. Examples are adhesives, mastics, resins, grease, paint, oils and many liquid food products. Where external heating is required or preferred, flexible Silicone Rubber Drum Heaters can keep these materials at proper handling or process consistencies. A spring-hook arrangement easily attaches these items to standard 5, 15, 30 or 55 gallon steel drums. Even heat transfer limits scorching or degradation of sensitive materials. Optional molded-in thermostats are full range adjustable or have fixed settings.

  • Flexible-can easily be wrapped around drum and attached with spring
  • 3", 4" and 9-1/2" widths available
  • Full vulcanized silicone rubber, fiberglass cloth, and metal screen laminate
  • Resistant to mechanical damage
  • Electrically grounded
  • 6 ft. cord with plug
  • Optional 70-340°F thermostat or preset, fixed thermostat (specify setting)
  • Other sizes and ratings available
Drum Capacity Cross Reference

Diameter
(Inches)
Diameter
(Millimeter)

55 gal.
30 gal.
15 gal.
 5 gal.
22-1/2" (nom.)
18-1/2" (nom.)
13-1/2" (nom.)
11-1/2" (nom.)
570 mm
470 mm
343 mm
290 mm
210 litres
115 litres
 57 litres
 20 litres

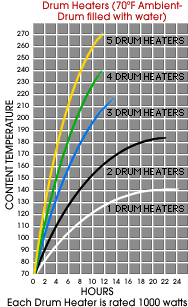

View Graphs
Order Online
Click to enlarge

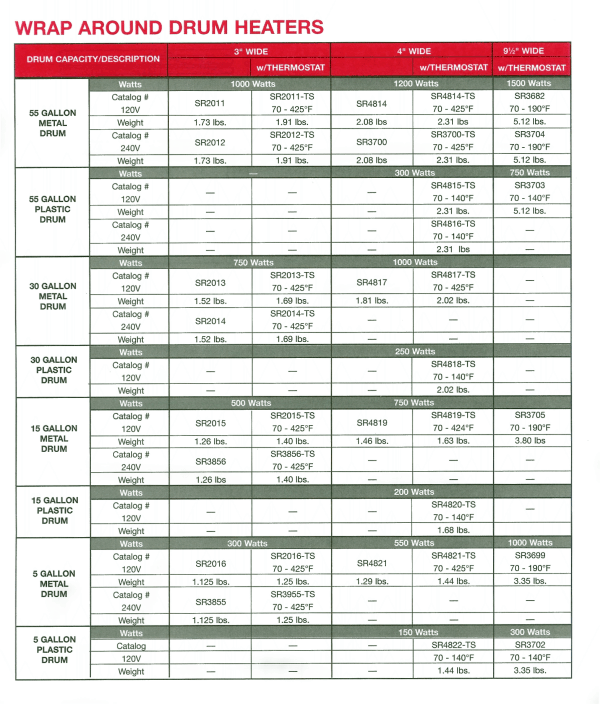

Drum Capacity/Desciption 3" Wide 4" Wide 9-1/2" Wide
           w/ Thermostat            w/ Thermostat w/ Thermostat
55 gallon -
metal drum
  1000 Watts 1200 Watts 1500 Watts
120 V SR2011 SR2011-TS
70 - 425°F
SR4814 SR4814-TS
70 - 425°F
SR3682
70 - 190°F
240 V SR2012 SR2012-TS
70 - 425°F
SR3700 SR3700-TS
70 - 425°F
SR3704
70 - 190°F
55 gallon -
plastic drum
    300 Watts 750 Watts
120 V - - - SR4815-TS
70 - 140°F
SR3703
70 - 140°F
240 V - - - SR4816-TS
70 - 140°F
-
30 gallon -
metal drum
  750 Watts 1000 Watts -
120 V SR2013 SR2013-TS
70 - 425°F
SR4817 SR4817-TS
70 - 425°F
-
240 V SR2014 SR2014-TS
70 - 425°F
- - -
30 gallon -
plastic drum
  - 250 Watts -
120 V - - - SR4818-TS
70 - 140°F
-
15 gallon -
metal drum
  500 Watts 700 Watts 1000 Watts
120 V SR2015 SR2015-TS
70 - 425°F
SR4819 SR4819-TS
70 - 425°F
SR3705
70 - 190°F
240 V SR3856 SR3856-TS
70 - 425°F
- - -
15 gallon -
plastic drum
    200 Watts
120 V - - - SR4820-TS
70 - 140°F
-
5 gallon -
metal drum
  300 Watts 550 Watts 1000 Watts
120 V SR2016 SR2016-TS
70 - 425°F
SR4821 SR4821-TS
70 - 425°F
SR3699
70 - 190°F
240 V SR3855 SR3855-TS
70 - 425°F
- - -
5 gallon -
plastic drum
  - 150 Watts 300 Watts
120 V - - - SR4822-TS
70 - 140°F
SR3702
70 - 140°F
