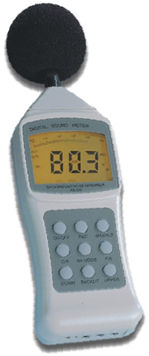

APT Instruments SL2100 Sound Level Meter
Monitor the sound from traffic noise, alarm systems and workplace machinery. Dual digital display with graph indicator. Download data easily to PC for record keeping. SL2100 Sound Level Meter
  • Measurement in 6 different ranges.
  • MAX / MIN / HOLD features.
  • Meets IEC 651, type 2; ANSI S1.4 / 2.
  • Background noise absorber.
  • A & C weighing.
  • Condenser type microphone (6 mm D).
  • Fast / Slow response, backlit display.
  • RS-232 output. Order optional Windows® - compatible software for downloading separately.
  • System includes meter, hard ABS case and battery.
  • Portable — 290 x 80 x 38 mm; 330 g.

SPECIFICATIONS

Auto range: 30 to 130 dB (6 ranges in 50 dB increments)
Resolution: 0.1
Accuracy: ±1.5 dB (ref conditions)
Analog Output: 0.707 vms (at FS)(ac)
10 mV / dB (dc)
Freq. range: 31.5 Hz to 8 KHz
Download PDF Technical Data File
Technical Brochure

SL2100 ORDERING INFORMATION
Part No.
Description
Select Part Number to Purchase On-Line
APSL2100.001 SL2100 Meter with hard ABS case and battery.
APSL2100.950 Windows software and PC cable (SL2100).
