Air Nozzles are available
in the most popular pipe and tubing size connections for easy retrofit
to existing blowoffs. Simply select the nozzle with the same fitting
size as your existing compressed air blowoff pipe or tube. |
Pipe
Size Nozzles |
Safety Air Nozzles
Model 1001 - 1/8 FNPT Brass Model 1002 - 1/4 FNPT Brass
Model 1002SS 1/4 FNPT Stainless Steel
Model 1003 - 3/8 FNPT Brass
|
![Click here for ordering information!](/images/Exair/asan2.jpg) |
|
|
|
Tube
Size Nozzles |
Super Air Nozzles
Model 1004 3/8 NPT Zinc Aluminum Alloy
Model 1004SS 3/8 FNPT Stainless Steel
Model 1005 3/8 MNPT Zinc Aluminum Alloy
Model 1005SS 3/8 MNPT Stainless Steel
Model 1006 1/2 FNPT Zinc Aluminum Alloy
Model 1006SS 1/2 FNPT Stainless Steel
|
![Click here for ordering information!](/images/Exair/asan.jpg) |
|
|
|

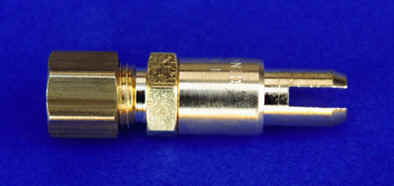

Adjustable
Air Nozzles |
Adjustable Air Nozzles
Model 1009 1/8 MNPT Aluminum
Model 1009SS 1/8 MNPT 303 Stainless Steel |
![Click here for ordering information!](/images/Exair/anoz1009.jpg) |
|
|
|
![](../_themes/iprocessmart/divider.gif)
|
Air Nozzle Dimensions |
Model |
A |
B |
C |
D |
E |
Force* |
No. |
Size |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
Ounces |
Grams |
1001 |
1/8 NPTF |
0.50 |
13 |
1.38 |
35 |
0.38 |
10 |
N/A |
N/A |
11 |
312 |
1002 |
1/4
NPTF |
0.63 |
16 |
1.56 |
40 |
0.50 |
13 |
N/A |
N/A |
14.5 |
411 |
1002SS |
1/4
NPTF |
0.63 |
16 |
1.56 |
40 |
0.50 |
13 |
N/A |
N/A |
14.5 |
411 |
1003 |
3/8
NPTF |
0.75 |
19 |
1.88 |
48 |
0.63 |
16 |
N/A |
N/A |
20 |
567 |
1005 |
1/4
Tube |
0.50 |
13 |
1.75 |
44 |
0.38 |
10 |
0.50 |
13 |
11 |
312 |
1006 |
5/16
Tube |
0.50 |
13 |
1.75 |
44 |
0.38 |
10 |
0.56 |
14 |
11 |
312 |
1009 |
1/8
NPTM |
0.63 |
16 |
1.75 |
44 |
0.63 |
16 |
N/A |
N/A |
12.5** |
354** |
1009SS |
1/8
NPTM |
0.63 |
16 |
1.75 |
44 |
0.63 |
16 |
N/A |
N/A |
12.5** |
354** |
* 80 PSIG (5.5 BAR) at 12" (30cm) from
target
** .008" (.20mm) factory setting |
|
