FDC Analog Temperature Controllers

Analog Temperature Controls

Specifications

UR CSA CE ROHS

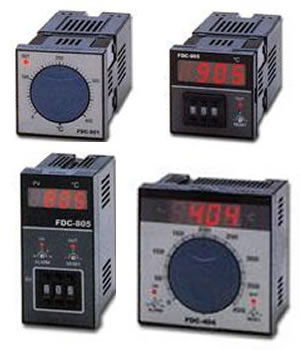

Future Design’s Analog Series controllers provide low cost Simple to use on/off or proportional control for 1/16 DIN through 1/4 DIN requirements.
Built in “Laser Trim” ASIC technology offers reliable and repeatable control for industrial applications. A wide selection of control outputs and input ranges make the FDC analog series a perfect choice for low cost applications.

  • Input: Specific Thermocouple or RTD Range
  • Control Outputs: On/Off or Proportional control, field selectable on/off or proportional
    • relay 3A/240 VAC resistive [SPDT]
    • ssr driver - 5VDC/30mA
    • 4-20/0-20mA into 500 ohms maximum
    • 0-10VDC maximum impendence 10K ohms
  • Alarm Outputs:
    • Relay 2 amps@240VAC Resistive (N.O./N.C.)
    • None: for models 901/902/905/401/402
    • Deviation alarm only on models 404/405/805
Model DIN Setpoint Method and Display Indication Approvals Manuals
FDC 901 1/16 DIN Analog Potentiometer SP; No display UL Component Recognized, CE
FDC 902 1/16 DIN Analog Potentiometer SP; "in-range" LED display UL Component Recognized, CE
FDC 905 1/16 DIN Thumbwheel SP; Digital PV Display UL Component Recognized, CE Manual
FDC 805 1/8   DIN Thumbwheel SP; Digital PV Display UL Component Recognized, CE Manual
FDC 401 1/4   DIN Analog Potentiometer SP; No display CE
FDC 402 1/4   DIN Analog Potentiometer SP; "in-range" LED display CE
FDC 404 1/4   DIN Analog Potentiometer SP; Digital PV Display UL Component Recognized, CSA
FDC 405 1/4   DIN Thumbwheel SP; Digital PV Display UL Component Recognized, CE
