Dwyer Ranges and Dimensions

INCLINED TYPE

Model
No.
 Ranges
Inches of
Water
 Minor
Scale
Divisions
 Scale
Length

Dimensions, Inches

 Weight
lbs.-oz.
A
 B
 C
 D
 E
 F
200
200.5
201
202
202.5
209
215
244
246
 .10-0-1.0
.10-0-1.0
.05-0-.50
.20-0-2.0
.20-0-2.0
.20-0-3.0
.05-0-.25
0-4
0-6
 .02
.01
.01
.02
.01
.02
.005
.02
.02
 5 ½
8 ¼
5 ½
8 ¼
8 ¾
8 ¾
6
13 ¼
20
 7
7
7
9
9
9
7
11
13 ½
 10
13
10
13
13
13
10
16 ½
23
 4 1/8
3 15/16
3 5/16
5 ½
5 5/8
7
3 1/16
8 1/8
11
 8 ½
11 3/8
8 ¼
11 1/8
12
11 ¼
9 ½
15 5/8
22
  2
 2
 2
 2
 2
 2
 2
 4
 4
 3
4 ½
3
4 ½
4 ½
4 ½
3
8 ½
15
 2-14
3-11
2-12
4-5
4-7
4-11
2-14
9-11
13-14



VERTICAL OR WELL-TYPE

Model
No.
 Ranges
Inches of
Water
 Minor
Scale
Divisions
 Scale
Length
 Dimensions, Inches
 Weight
lbs.-oz.
A
 B
 E
 F
 G
300
306
308
310
 0-4
0-6
0-8
0-10
 .10
.10
.10
.0
 4 ½
7 ¾
9
11 1/8
   7
7
7
7
   10
 16
 16
 16
   3
 4
 4
 4
   3
 4
 4
 4
 8 ¼
10 7/8
13 1/16
15 ¼
 2-5
3-3
3-7
3-10

STANDARD ACCESSORIES:

One extra bottle of .825 red gage oil, instructions and one set of type "a" connections, described below, unless other connection option is specified.

A-396A Calibration Pump - Use as a pressure source to calibrate gages, set switches, etc. Has volume adjuster, bleed valve and fine adjustment for pressures up to 72 psi (5 bar). Accessories include barbed fitting, tee connector, three 36 in. lengths of vinyl tubing and instructions.
Over-Pressure Safety Traps Prevent Fluid Loss
Fig. 7-3. Exclusive Dwyer over pressure safety traps assure that over range pressures whether gradual or a sudden surge will not force the liquid out of the gage. Over pressures simply float the cork, force the O-ring over the opening and seal the fluid in the gage. When pressure is reduced, cork drops down releasing the O-ring to open trap and gage continues in operation.

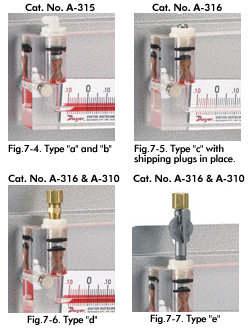

Connection Options For Dwyer Solid Plastic Stationary Gages
Unless otherwise specified, Dwyer solid plastic stationary gages will be furnished with type "a" connections consisting of two rapid shutoff type, molded nylon tubing connectors (see Fig. 5-3, page 21), two 3 ft. lengths flexible Tygon plastic tubing, and two 1/8" pipe thread adapters.

If so specified on the order, Dwyer solid plastic stationary gages will be furnished with your choice of the following connections options:

Type "b": Two molded nylon tubing connectors, rapid shutoff type, one 9' length rubber tubing, and one brass terminal tube.

Type "c": Two 1/8" pipe thread openings.

Type "d": Two compression fittings for ¼" O.D copper or aluminum tubing.

Type "e": 3-way vent valves, 1/8" S.P.T. to ¼" metal tubing, at additional cost.
