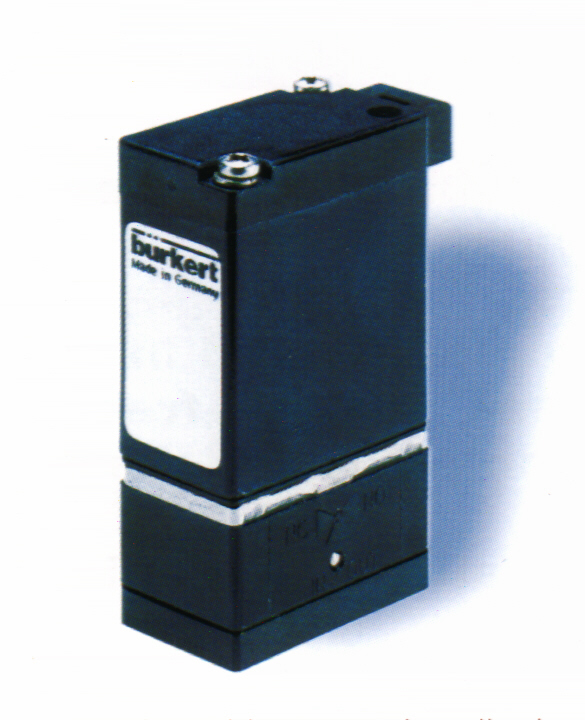

6125 Miniature Rocker Solenoid Valve with isolating diaphragm - sub-base connection |
 |
 |
2/2-Way,
Sub-base Vacuum-140 PSI Normally Closed |
|||||||||
|
||||||||||
| Rocker solenoid valve with separating diaphragm provides high reliability and long service life. For difficult and slightly aggressive media. Heat transfer is virtually eliminated as the coil is not directly in contact with the diaphragm. No cross contamination occurs and the control of critical fluids is possible. | ||||||||||
| Technical Data | |
| Pressure Range | Vacuum - 140 PSI |
| Temperature media | 14°F ... +122°F |
| Ambient temperature | +131°F, max. |
| Body material | Stainless steel 360L, brass |
| Isolating plate body/coil | Stainless steel 301 |
| Seat material | FKM |
| Coil material | Polyamide |
| Power consumption | DC: 3.4W; UC: 4W |
| Protection class | IP
65 with cable plug type 2506. IP 20 without cable plug. |
| Cable plug | Type
2506, DIN 43 650 C, 0-250 V (standard delivery with the valve). Type 2505, rectangular plug (to be ordered separately). |
| Electrical connection | -
Side or top tag connector to DIN 43 650. - Rectangular connector |
| Options | |
| With
diagnostics: - Flow / low flow signal with adjustable level. - Valve position signal. - LED's and binary outputs. |
|
| Specifications | ||||||
| Port C. | Orifice [inch] | Cv | Pressure Range1) [PSI] | Seal Material | Electrical Connection | Weight [oz.] |
| Subb. | 1/32 | 0.015 | Vac.-140 | FKM | cab.plug 2506 | 1.87 |
| Subb. | 1/32 | 0.015 | Vac.-140 | FKM | rect.plug 2505 | 1.87 |
| Subb. | 1/32 | 0.015 | Vac.-140 | EPDM | cab.plug 2506 | 1.87 |
| 1) back pressure 10 bar | ||||||
| ORDERING CHART | |||
| P/N | Description | Order Now! | |
| BU 459097T | Type
6125 Burkert BU 459097T 2/2 Way Miniature Solenoid Valve, with sub-base conn. 12VDC, N.C. |
 |
|
| BU 459098C | Type
6125 Burkert BU 459098C 2/2 Way Miniature Solenoid Valve, with sub-base conn. 24VDC, N.C. |
|
|
| BU 458118B | Type
6125 Burkert BU 458118B 2/2 Way Miniature Solenoid Valve, with sub-base conn. 120V/UC, N.C. |
|
|
| BU 458119C | Type
6125 Burkert BU 458119C 2/2 Way Miniature Solenoid Valve, with sub-base conn. 240V/UC, N.C. |
|
|
| BU 459099D | Type
6125 Burkert BU 459099D 2/2 Way Miniature Solenoid Valve, with sub-base conn. 24VDC, N.C. |
|
|
| BU 459100P | Type
6125 Burkert BU 459100P 2/2 Way Miniature Solenoid Valve, with sub-base conn. 12VDC, N.C. |
|
|
| BU 459101C | Type
6125 Burkert BU 459101C 2/2 Way Miniature Solenoid Valve, with sub-base conn. 24VDC, N.C. |
|
|
