Reversible Drum Vac™



Pump 55 gallons in 90 seconds - Two-way pumping action

Drum Vac...Stainless Steel

EXAIR's compressed air operated Reversible Drum Vac System attaches quickly to any closed head 30 or 55 gallon (45 imperial gallon/205 liter) drum. Its high powered vacuum fills the drum in less than two minutes. With the simple turn of a knob, the same stainless steel pump quickly empties the drum. Coolant sumps can be easily refilled, floor spills vacuumed, or contaminated liquids transferred to filtration tanks in minutes.

Drum Vac

A safe, maintenance free way to recover:

  • Coolant
  • Hydraulic oils
  • Liquid spills, sludge and chips
  • Tramp oil
  • Waste water

Video

Lathe
Applications Advantages
  • Coolant sumps
  • Food processing
  • Lathes
  • Floor cleanup
  • EDM machines
  • Pits
  • Screw machines
  • Machining centers
  • Tanks
  • No moving parts
  • Maintenance free
  • Stainless steel construction
  • Safe - no electricity
  • Built-in pressure/vacuum relief
  • Compact and portable
  • Installs quickly
  • Spill free - auto safety shutoff
  • Fits standard closed head drum
Mini Deum Vac
5 gallon Mini Reversible Drum Vac - comes complete with drum and all tools

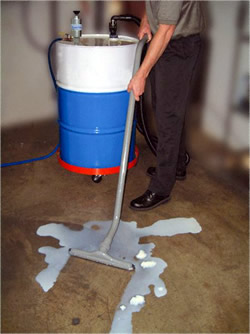

Cleaning Up a Spill

Pump 55 gallons in 90 seconds!

Two-way pumping action.
With the turn of a knob, the compressed air powered Reversible Drum Vac will fill or empty a 55-gallon (45 imperial gallon/205 liter) drum in 90 seconds. This two-way drum pump attaches quickly to standard drum connections. There are no moving parts to assure maintenance free operation.

The flow rate in and out of the drum can be controlled with the knob, making it ideal for dispensing liquids.

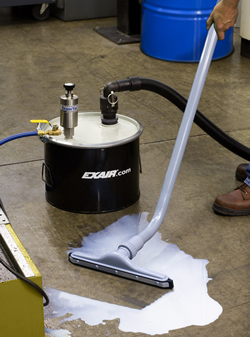

EXAIR's new Mini Reversible Drum Vac System delivers the same two-way action for small jobs. It comes complete with a 5 gallon drum and all the tools.

Electrically operated "all purpose" vacuums aren't designed for use in industrial environments. As a result, motors wear out quickly and impellers clog. The Reversible Drum Vac does not use electricity and has no moving parts, assuring maintenance free operation. An automatic safety shutoff valve prevents spills or overfilling.

PDF File Catalog page

mini system

SPECIFICATIONS
DESCRIPTION SUPPLY PRESSURE AIR CONSUMPTION WATER FLOW RATE
  PSIG BAR SCFM SLPM GPM LPM
REVERSIBLE DRUM VAC 80 5.5 19 538 30 114
NOTE: The Drum Vac System must be used with a closed head steel drum with a nominal wall thickness of 1.5mm (16 gauge) and in good condition.
Warning: Do not use with any material with a low flash point or with flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline or kerosene.

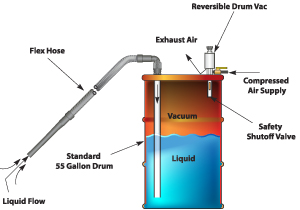

How the DrumVac works
Model # Description
6196 55 GAL Reversible Drum Vac System - includes two-way pump assembly (1/4 NPT), shutoff valve, 10' (3m) flexible vacuum hose (1.5"/38mm I.D.) with 90° quick release elbow connection, (1) aluminum wand,(drum not included). 6196
6296

55 GAL Reversible Drum Vac System (Deluxe System) - includes two-way pump assembly (1/4 NPT), shutoff valve, 10' (3m) flexible vacuum hose (1.5"/38mm I.D.) with 90° quick release elbow connection, (1) aluminum wand, (2) extension wands, crevice tool, skimmer tool (drum not included).

6296
6196-30 30 GAL Reversible Drum Vac System - includes two-way pump assembly (1/4 NPT), shutoff valve, 10' (3m) flexible vacuum hose (1.5"/38mm I.D.) with 90° quick release elbow connection, (1) aluminum wand,(drum not included). 6196
6196-5 Mini Reversible Drum Vac System - includes two-way pump assembly, shut-off valve, 5 gallon container with lid and locking ring, 10' (3m) flexible vacuum hose (1.5"/38mm I.D.) with 90° quick release elbow connection, aluminum wand, spill recovery kit, (2) extension wands, crevice tool and skimmer tool. 6196-5
Accessories
Model # Description
9001 Auto Drain Filter Separator, 1/4 NPT, 73 SCFM (2067 SLPM)
9005 Oil Removal Filter, 3/8 NPT, 1/4 NPT, 37 SCFM (1048 SLPM)
9041

55 Gallon Drum Dolly

9041-30 30 Gallon Drum Dolly
6901 Spill Recovery Kit, includes one-piece 54" (1.4m) ABS wand and 14" (36cm) double blade squeegee tool.
6580-20 20' (6.1m) Static Resistant Vacuum Hose
