TUBE FITTINGS
Saint Gobain (Furon) offers superior engineering expertise, with an experienced injection molding staff that brings innovative solutions to even the most challenging molding requirements. Better technical solutions, combined with precision molding capabilities, plus over 35 years of dedicated PTFE processing, and more than 20 years of PFA injection molding deliver a significant competitive advantage for our customers. Furon™s injection molding machines are equipped with custom-built, highly specialized components to produce fluoropolymer products that meet or exceed the most stringent Semiconductor Industry standards for purity and ionic extractables. Saint Gobain (Furon™s) injection molding machines employ state-of-the-art process controls to assure accurate and repeatable delivery of high-purity fluoropolymer materials into each mold, every time.

FLARE GRIP ® II FINE THREAD FLARE FITTINGS

Benefits n Interchangeable, industry compatible with industry standard fine thread flare fittings n Designed for complete drain down to assure high purity fluid environment n Designed to maximize system chemical delivery efficiency Furon manufactures a complete line of industry standard fine thread flare type fittings in the following sizes. 1/4", 3/8", 1/2, 3/4" and 1". Flare Grip II offers the industry a fitting line that is compatible with a large number of fluid handling systems. Features n Same footprint as industry standard fine thread flare fittings n Minimum dead volume n Minimum pressure drop n Assembled and double bagged in a class 100 clean room environment.

FLARE GRIP ® COURSE THREAD FLARE FITTINGS

Benefits n Course thread design is stronger than comparable flare fittings with fine threads n Available in a wide range of sizes: 1/4" 3/8", 1/2", 3/4" and 1" Accommodates temperatures up to 150 degrees C. Working pressures range from vacuum to 150 PSIG at ambient temperature n Designed for complete drain down to assure high purity fluid environment Specifically designed to handle aggressive chemicals or the transfer of inert and ultrapure fluids, Furon Flare Grip Course Thread Fittings accommodate a wide range of temperatures and pressures and are designed to maximize system chemical delivery efficiency.
Fuse Bond Fittings

FUSE-BOND

Furon manufactures a complete line of industry standard high purity PFA weldable Fuse-Bond pipe fittings. The product line size ranges from 1/4" to 2" and are designed to be compatible with "Schedule 40" pipe. All industry standard Furon fittings are manufac- tured with the additional feature of alignment marks. (patent pending). This simple system maintains precise alignment of the fittings during assembly and welding.

The alignment marks at every 45° offer the following:

  1. Simple system to maintain precise alignment of fittings during assembly welding
  2. Faster and easier to use for assembly
  3. Compatible with all Fuse-Bond Welding equipment
  4. Ensures that welded assemblies are consistent and repeatable for ease of system integration

Benefits:

  • Fuse-Bond fittings are also offered in optional compact configurations. Please consult factory for availability.
  • Compact designs save up to 50% reduction in assembly time due to the elimination of cutting, squaring and facing each fitting prior to welding.
  • Reduces the overall system footprint.
  • Reduces hold-up volume due to reduced fitting size.
  • Material savings reduce overall cost


Part Number Name
Call to Order
FU IMP22UAM Furon Union Male Adapter FU IMP22UAM 1/8"OD Tube x 1/8"NPT
FU IMP42UAM Furon Union Male Adapter FU IMP42UAM 1/4"OD Tube x 1/8"NPT
FU IMP44UAM Furon Union Male Adapter FU IMP44UAM 1/4"OD Tube x 1/4"NPT
FU IMP46UAM Furon Union Male Adapter FU IMP46UAM 1/4"OD Tube x 3/8"NPT
FU IMP48UAM Furon Union Male Adapter FU IMP48UAM 1/4"OD Tube x 1/2"NPT
FU IMP64UAM Furon Union Male Adapter FU IMP64UAM 3/8"OD Tube x 1/4"NPT
FU IMP66UAM Furon Union Male Adapter FU IMP66UAM 3/8"OD Tube x 3/8"NPT
FU IMP68UAM Furon Union Male Adapter FU IMP68UAM 3/8"OD Tube x 1/2"NPT
FU IMP84UAM Furon Union Male Adapter FU IMP84UAM 1/2"OD Tube x 1/4"NPT
FU IMP86UAM Furon Union Male Adapter FU IMP86UAM 1/2"OD Tube x 3/8"NPT
FU IMP88UAM Furon Union Male Adapter FU IMP88UAM 1/2"OD Tube x 1/2"NPT
FU IMP812UAM Furon Union Male Adapter FU IMP812UAM 1/2"OD Tube x 3/4"NPT
FU IMP128UAM Furon Union Male Adapter FU IMP128UAM 3/4"OD Tube x 1/2"NPT

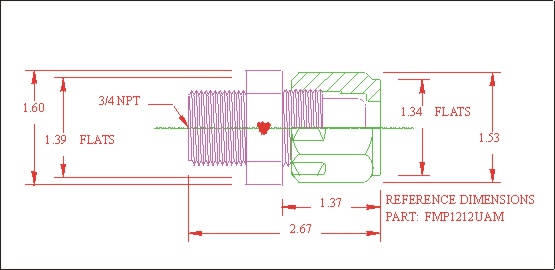

FU IMP1212UAM Furon Union Male Adapter FU IMP1212UAM 3/4"OD Tube x 3/4"NPT
FU IMP1216UAM Furon Union Male Adapter FU IMP1216UAM 3/4"OD Tube x 1"NPT
FU IMP1616UAM Furon Union Male Adapter FU IMP1616UAM 1"OD Tube x 1"NPT
FU IMP2SU Furon Straight Union FU IMP2SU 1/8"OD Tube
FU IMP4SU Furon Straight Union FU IMP4SU 1/4"OD Tube
FU IMP6SU Furon Straight Union FU IMP6SU 3/8"OD Tube
FU IMP8SU Furon Straight Union FU IMP8SU 1/2"OD Tube
FU IMP12SU Furon Straight Union FU IMP12SU 3/4"OD Tube
FU IMP16SU Furon Straight Union FU IMP16SU 1"OD Tube
FU IMP22EAM Furon Elbow Male Adapter FU IMP22EAM 1/8"OD Tube x 1/8"NPT
FU IMP24EAM Furon Elbow Male Adapter FU IMP24EAM 1/8"OD Tube x 1/4"NPT
FU IMP42EAM Furon Elbow Male Adapter FU IMP42EAM 1/4"OD Tube x 1/8"NPT
FU IMP44EAM Furon Elbow Male Adapter FU IMP44EAM 1/4"OD Tube x 1/4"NPT
FU IMP46EAM Furon Elbow Male Adapter FU IMP46EAM 1/4"OD Tube x 3/8"NPT
FU IMP62EAM Furon Elbow Male Adapter FU IMP62EAM 3/8"OD Tube x 1/8"NPT
FU IMP64EAM Furon Elbow Male Adapter FU IMP64EAM 3/8"OD Tube x 1/4"NPT
FU IMP66EAM Furon Elbow Male Adapter FU IMP66EAM 3/8"OD Tube x 3/8"NPT
FU IMP68EAM Furon Elbow Male Adapter FU IMP68EAM 3/8"OD Tube x 1/2"NPT
FU IMP84EAM Furon Elbow Male Adapter FU IMP84EAM 1/2"OD Tube x 1/4"NPT
FU IMP86EAM Furon Elbow Male Adapter FU IMP86EAM 1/2"OD Tube x 3/8"NPT
FU IMP88EAM Furon Elbow Male Adapter FU IMP88EAM 1/2"OD Tube x 1/2"NPT
FU IMP812EAM Furon Elbow Male Adapter FU IMP812EAM 1/2"OD Tube x 3/4"NPT
FU IMP128EAM Furon Elbow Male Adapter FU IMP128EAM 3/4"OD Tube x 1/2"NPT
FU IMP1212EAM Furon Elbow Male Adapter FU IMP1212EAM 3/4"OD Tube x 3/4"NPT
FU IMP1216EAM Furon Elbow Male Adapter FU IMP1216EAM 3/4"OD Tube x 1"NPT
FU IMP1616EAM Furon Elbow Male Adapter FU IMP1616EAM 1"OD Tube x 1"NPT
FU IMP24UR Furon Straight Union Reducer FU IMP24UR 1/8"OD x 1/8"OD Tube
FU IMP46UR Furon Straight Union Reducer FU IMP46UR 1/4"OD x 3/8"OD Tube
FU IMP48UR Furon Straight Union Reducer FU IMP48UR 1/4"OD x 1/2"OD Tube
FU IMP68UR Furon Straight Union Reducer FU IMP68UR 3/8"OD x 1/2"OD Tube
FU IMP812UR Furon Straight Union Reducer FU IMP812UR 1/2"OD x 3/4"OD Tube

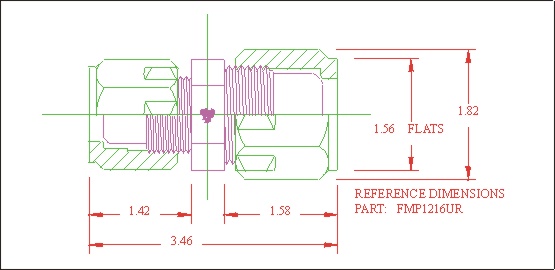

FU IMP1216UR Furon Straight Union Reducer FU IMP1216UR 3/4"OD x 1"OD Tube
FU IMP2UE Furon Union Elbow FU IMP2UE 1/8"OD Tube
FU IMP4UE Furon Union Elbow FU IMP4UE 1/4"OD Tube
FU IMP6UE Furon Union Elbow FU IMP6UE 3/8"OD Tube
FU IMP8UE Furon Union Elbow FU IMP8UE 1/2"OD Tube
FU IMP12UE Furon Union Elbow FU IMP12UE 3/4"OD Tube
FU IMP16UE Furon Union Elbow FU IMP16UE 1"OD Tube
FU IMP2UT Furon Union Tee FU IMP2UT 1/8"OD Tube
FU IMP4UT Furon Union Tee FU IMP4UT 1/4"OD Tube
FU IMP6UT Furon Union Tee FU IMP6UT 3/8"OD Tube
FU IMP8UT Furon Union Tee FU IMP8UT 1/2"OD Tube
FU IMP12UT Furon Union Tee FU IMP12UT 3/4"OD Tube
FU IMP16UT Furon Union Tee FU IMP16UT 1"OD Tube
FU IMP44EAF Furon Elbow Adapter Female FU IMP44EAF 1/4"OD Tube x 1/4"NPT
FU IMP64EAF Furon Elbow Adapter Female FU IMP64EAF 3/8"OD Tube x 1/4"NPT
FU IMP2SUP Furon Straight Union Panel FU IMP2SUP 1/8"OD Tube
FU IMP4SUP Furon Straight Union Panel FU IMP4SUP 1/4"OD Tube
FU IMP6SUP Furon Straight Union Panel FU IMP6SUP 3/8"OD Tube
FU IMP8SUP Furon Straight Union Panel FU IMP8SUP 1/2"OD Tube
FU IMP12SUP Furon Straight Union Panel FU IMP12SUP 3/4"OD Tube
FU IMP42UAF Furon Union Adapter Female FU IMP42UAF 1/4"OD Tube x 1/8"NPT
FU IMP44UAF Furon Union Adapter Female FU IMP44UAF 1/4"OD Tube x 1/4"NPT
FU IMP46UAF Furon Union Adapter Female FU IMP46UAF 1/4"OD Tube x 3/8"NPT
FU IMP64UAF Furon Union Adapter Female FU IMP64UAF 3/8"OD Tube x 1/4"NPT
FU IMP66UAF Furon Union Adapter Female FU IMP66UAF 3/8"OD Tube x 3/8"NPT
FU IMP68UAF Furon Union Adapter Female FU IMP68UAF 3/8"OD Tube x 1/2"NPT
FU IMP84UAF Furon Union Adapter Female FU IMP84UAF 1/2"OD Tube x 1/4"NPT
FU IMP86UAF Furon Union Adapter Female FU IMP86UAF 1/2"OD Tube x 3/8"NPT
FU IMP88UAF Furon Union Adapter Female FU IMP88UAF 1/2"OD Tube x 1/2"NPT
FU IMP812UAF Furon Union Adapter Female FU IMP812UAF 1/2"OD Tube x 3/4"NPT
FU IMP128UAF Furon Union Adapter Female FU IMP128UAF 3/4"OD Tube x 1/2"NPT
FU IMP4MRT Furon Male Run Tee FU IMP4MRT 1/4" x 1/4"OD Tube x 1/4"NPT
FU IMP6MRT Furon Male Run Tee FU IMP6MRT 3/8" x 3/8"OD Tube x 3/8"NPT
FU IMP8MRT Furon Male Run Tee FU IMP8MRT 1/2" x 1/2"OD Tube x 1/2"NPT
FU IMP2MBT Furon Male Branch Tee FU IMP2MBT 1/8" x 1/8"OD Tube x 1/8"NPT
FU IMP4MBT Furon Male Branch Tee FU IMP4MBT 1/4" x 1/4"OD Tube x 1/4"NPT
FU IMP6MBT Furon Male Branch Tee FU IMP6MBT 3/8" x 3/8"OD Tube x 3/8"NPT
FU IMP2N Furon Nut FU IMP2N 1/8"OD Tube
FU IMP4N Furon Nut FU IMP4N 1/4"OD Tube
FU IMP6N Furon Nut FU IMP6N 3/8"OD Tube
FU IMP8N Furon Nut FU IMP8N 1/2"OD Tube
FU IMP12N Furon Nut FU IMP12N 3/4"OD Tube
FU IMP2G Furon Gripper FU IMP2G 1/8"OD Tube
FU IMP4G Furon Gripper FU IMP4G 1/4"OD Tube
FU IMP6G Furon Gripper FU IMP6G 3/8"OD Tube
FU IMP8G Furon Gripper FU IMP8G 1/2"OD Tube
FU IMP12G Furon Gripper FU IMP12G 3/4"OD Tube
FU IMP16G Furon Gripper FU IMP16G 1"OD Tube
FU IMP2F Furon Ferrule FU IMP2F 1/8"OD Tube
FU IMP4F Furon Ferrule FU IMP4F 1/4"OD Tube
FU IMP6F Furon Ferrule FU IMP6F 3/8"OD Tube
FU IMP8F Furon Ferrule FU IMP8F 1/2"OD Tube
FU IMP12F Furon Ferrule FU IMP12F 3/4"OD Tube
FU IMP16F Furon Ferrule FU IMP16F 1"OD Tube
FU IMP2P Furon Plug FU IMP2P 1/8"OD Tube
FU IMP4P Furon Plug FU IMP4P 1/4"OD Tube
FU IMP6P Furon Plug FU IMP6P 3/8"OD Tube
FU IMP8P Furon Plug FU IMP8P 1/2"OD Tube
FU IMP12P Furon Plug FU IMP12P 3/4"OD Tube
