STAINLESS STEEL BRAIDED LEAD PROTECTION

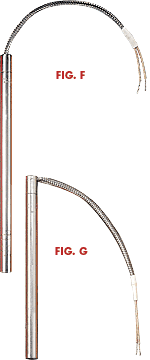

Swaged-in double conductor stainless steel braid is internally connected for strength and full length flexibility. See chart below for the additional dimension the Mighty Watt Plus Figure F and Figure G adds to the sheath length of stock items. For non-stock single conductor braided lead protection, specify Figure H for straight exit, Figure J for right angle. When ordering non-stock Fig. F, G, H or J items, specify the overall sheath length. 14" high temperature (850 F/450 C) leads with 12" braid is standard. Specify additional length.

Non-Stock Braided Lead Protection
Dia. Minimum Unheated*
Fig. F/H Fig. G/J
1/8" -- --
1/4" 1" 1"
5/16" 1" 1"
3/8" 1-1/2" 1-1/2"
1/2" 1-1/2" 1-1/2"
5/8" 1-9/16" 1-9/16"
3/4" 1-7/8" 1-7/8"
15/16" 1-7/8" 1-7/8"
1" 1-7/8" 1-7/8"
1-1/4" 1-7/8" 1-7/8"
* At lead end. Standard cold sections can be increased. Consult Ogden for metric diameter dimensions.

2 Day Shipment Mighty Watt Plus Braided Lead Protection
Dia. Adds to Length
Fig. F Fig. G
1/4" 1/2" 9/16"
3/8" 1/2" 9/16"
1/2" 1/2" 5/8"
5/8" 1/2" 5/8"
3/4" 1/2" 5/8"
Add 3/8" to above dimension for total cold section at lead end.
Ordering Number Example:
From Current Stock List: 1/2" x 5-3/4" 1000W 240V MWEJ05N0116 Add 24" Fig. F Leads MWEJ05N0116-F2 (overall length now 6-1/4")
Using the same item, add 60" Fig. G leads MWEJ05N0116-G5 (overall length now 6-3/8")

RIGHT ANGLE FLEXIBLE LEADS
Figure R is used when spacing requirements are limited. See chart below for the additional dimension the Mighty Watt Plus adds to the sheath length of stock items. When ordering non-stock Fig. R, specify the overall sheath length. High temperature (850° F/450° C) leads are fully flexible from the exit of the sheath. 12" lead wire is standard. Specify additional length.

Non-Stock Right Angle Leads -
Fig. R
Dia. Minimum Unheated*
1/8" --
1/4" 1"
5/16" 1-1/2"
3/8" 1-1/2"
1/2" 1-1/2"
5/8" 1-9/16"
3/4" 1-7/8"
15/16" 1-7/8"
1" 1-7/8"
1-1/4" 1-7/8"
* At lead end. Standard cold sections can be increased. Consult Ogden for metric diameter dimensions.

2 Day Shipment Mighty Watt Plus Right Angle Leads - Fig. R
Dia. Adds to Lengh
1/4" 9/16"
3/8" 9/16"
1/2" 5/8"
5/8" 5/8"
3/4" 5/8"
Add 3/8" to above dimensions for total cold section at lead end.
Ordering Number Example:
From Current Stock List: 1/2" x 5-3/4" 1000W 240V MWEJ05N0116
Add 24" Fig. R Leads MWEJ05N0116-R2 (overall length now 6-3/8")
