FLANGED IMMERSION HEATERS
|
|
||||||||||||||

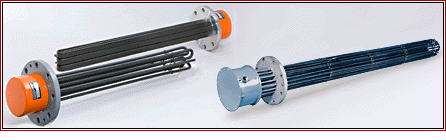

| Tubular heaters or Mighty-Blade elements are brazed or welded into a standard pipe flanged. 3", 4", 5", 6", 8", 10", 12" and 14" are standard sizes. flanged immersion heaters are used in large capacity vessels, in high pressure applications and are installed by bolting the unit to a matching flanged welded to the vessel wall. | ||||||||||||||
|
| Applications: | |
| Copper Sheath: | Clean water, freeze protection, hot water storage, boiler and water heaters, cooling towers, heating of solutions not corrosive to copper |
| Steel Sheath: | Asphalt, wax, paraffin, tar, fluid heat transfer mediums, petroleum, degreasing and solvent oils, fuel oils, machine oils, alcohol |
| Stainless Steel Sheath: | Process water, soap and detergent solutions, soluble cutting oils, demineralized or deionized water (passivation recommended) |
| Incoloy Sheath: | Solution water, corrosive solutions, air, gas, steam super heating |
| Be certain that the sheath material and watt density selected are compatible with the material being heated and the operating temperature. |
Options:
 |
Special rating or immersion length |
|
316 stainless steel or other sheath material |
|
Passivation |
|
Electro-polishing |
|
300 lb. or greater ASA flanged |
|
Other material for flanged |
|
Built-in thermostat |
|
Thermocouple attached to sheath for high-limit protection |
|
Baffles to increase material flow velocity |
|
Larger flanged sizes |
|
Stand-off
terminal enclosure to isolate terminals and wiring from flange in high temperature process |
|
.625" diameter elements to lower watt density or increase wattage |
|
ASME Certification |
Ordering Information:
Specify: Catalog number, watts, volts and phase. Consult iProcesSmart for any of the above options or any special requirement.
|
Flange
Size
|
Standard
No. of Tubular Elements
|
Can
Be Increased To:
|
Number
of Mighty-Blade Elements
|
|
3
|
3
|
6
|
--
|
|
4
|
6
|
--
|
6
|
|
5
|
6
|
12
|
--
|
|
6
|
12
|
15
|
15
|
|
8
|
18
|
27
|
--
|
|
10
|
27
|
36
|
--
|
|
12
|
36
|
48
|
--
|
|
14
|
45
|
60
|
--
|
|
Sheath
Material
|
Element
Type
|
Flange
Material
|
Watt
Density
|
Application
|
|
Tubular
|
Steel
|
High
45 watts/sq.in.
|
Clean
water, solutions not corrosive to copper
|
|
|
Tubular
|
Steel
|
High
45 watts/sq.in.
|
Process
water, detergent solutions, soluble cutting oils
|
|
|
Tubular
|
Steel
and Stainless Steel
|
High
45 watts/sq.in.
|
Solution
water, potable water
|
|
|
Mighty-Blade
|
Stainless
Steel
|
High
40&82 watts/sq.in.
|
Clean
and potable water, Solution water
|
|
|
Mighty-Blade
|
Stainless
Steel
|
Medium
28 watts/sq.in.
|
Cooking
oil, Ethylene glycol
|
|
|
Mighty-Blade
|
Stainless
Steel
|
Medium
20 watts/sq.in.
|
Corrosive
solutions, Heat transfer liquids, Degreasing solutions
|
|
|
Tubular
|
Steel
|
Medium
22 watts/sq.in.
|
Mild
corrosive solutions, Process air <1100°F sheath temperature
|
|
|
Tubular
|
Stainless
Steel
|
Medium
22 watts/sq.in.
|
Corrosive
solutions, Process air <1500°F sheath temperature
|
|
|
Tubular
|
Steel
|
Medium
22 watts/sq.in.
|
Lightweight
oil, degreasing or solvent oils
|
|
|
Tubular
|
Stainless
Steel
|
Medium
14 watts/sq.in.
|
Severe
corrosive solutions
|
|
|
Mighty-Blade
|
Stainless
Steel
|
Medium
15 watts/sq.in.
|
Corrosive
solutions, Medium weight oil, liquid parrafin
|
|
|
Tubular
|
Steel
|
Low
11&13 watts/sq.in.
|
Medium
weight oil, fuel oil
|
|
|
Mighty-Blade
|
Stainless
Steel
|
Low
6 watts/sq.in.
|
Heavy
weight oil, asphalt
|
|
|
Tubular
|
Steel
|
Low
6.5 watts/sq.in.
|
Heavy
weight oil, asphalt
|
