Heavy
Duty Level Switch ES20-611-PP
Series
20 Product Group
|
|
Hundreds of thousands
of 10-782s are being used in many ways that touch your everyday
life. How about soft drink dispensers, RO water dispensers,
ice cream machines, food warmers, coffee makers, chemical etching
machines, film processors, poultry feeders, copy machines, dishwashers,
equipment lubricators, fuel tanks... |
| Vertical
Mounted Level Switches |
|
|

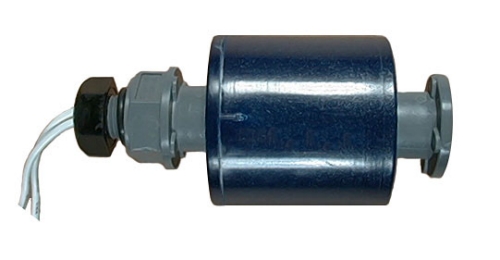

 ES20-611-PP
Heavy Duty Level Switch

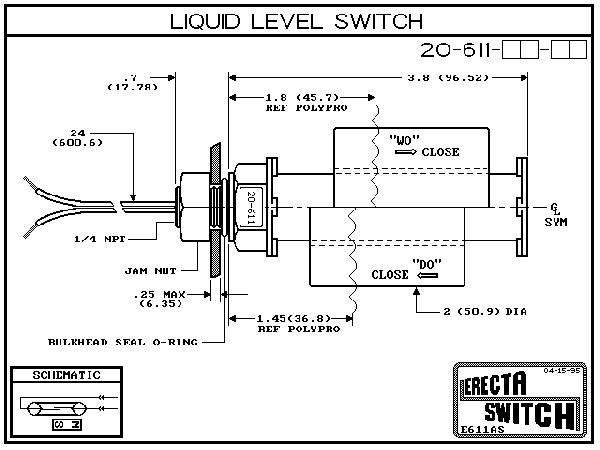

The ES20-611-PP
Line voltage liquid level corrosion resistant switch is designed
for industrial control circuits. It switches motor starters
directly. 2" diameter float responds to changes in liquid
level. The Yaskawa Bestact hermetically sealed switch can
be ordered with either NO or NC switch action. Contacts rated
at 120VA @ 240VAC, 30 watts @ 115DC, 1Ma @ 24VDC minimum.
The ES20-611-PP mates with other ERECTA SWITCH accessories
to enable many other custom assemblies.
|
| ORDERING
INFORMATION |
|
|
Polypropylene
Heavy Duty Vertical Level Switch |
 |
|
| FLOAT
BUOYANCY IN SPECIFIC GRAVITY 1.0 |
| Float |
|
|
|
Medium
|
| Exposed |
|
|
|
Air
|
| Submerged |
|
|
|
Water
|
| Height |
|
|
|
---
|
| ELECTRICAL
RATINGS - Bestact™ Inductive load switching |
| Contact
rating |
120
VA, 240 VAC Inductive |
UL
File
E159361
|
Yaskawa
Electric America Inc.
Bestact model R25
Northbrook, IL 60062 |
| Class
1, Division 2, Groups A,B,C,D. |
| AC |
240V
.5 AMP, 10 AMP MAX MAKE, 24V 1 MA MIN |
| DC |
115V
.3 AMP, .5 AMP MAX BREAK, 24V 1 MA MIN |
| APPLICATION
ENVIRONMENT |
| Pressure
(Hollow Float) |
80
PSI MAX @ 20°C |
Derate,
Zero @ 90°C |
| Temperature |
90°C
MAX |
---
|
| Specific
Gravity, PP |
0.8
MIN |
Clear
Liquid |
| Specific
Gravity, AC |
0.75
MIN |
Clear
Liquid |
| Specific
Gravity, KR |
0.95
MIN |
Clear
Liquid |
| MATERIALS
OF CONSTRUCTION |
| All
Models [PP] |
Polypropylene
(Gray, blue & black) |
| All
Models [AC] |
Acetal
(Red) |
| All
Models [KR] |
Kynar,
PVDF (Natural) |
|
|
| |
|
|
|
| |
| |
