Level
Switch ES10-782-PP
Series
10 Product Group
|
|
Hundreds of thousands
of 10-782s are being used in many ways that touch your everyday
life. How about soft drink dispensers, RO water dispensers,
ice cream machines, food warmers, coffee makers, chemical etching
machines, film processors, poultry feeders, copy machines, dishwashers,
equipment lubricators, fuel tanks... |
| Vertical
Mounted Level Switches |
|
|

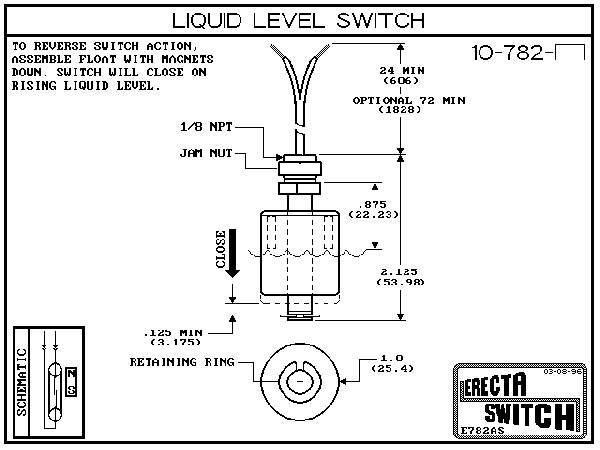

 ES10-782
Float Level Switch
The 10-782 liquid
level switch is the primary switching element of the ELECTRA
SWITCH Series 10 product group. It can be used alone or as
the switching element of a larger ERECTA SWITCH instrument
construction. Here's a quality instrument that can sense or
control just about any liquid at a paradoxically low price.
This pilot load switching device is recognized by the UL component
recognition program. It is a single-pole, single-throw switch
which can be configured to perform either normally open or
normally closed function.
|
|
ES10-782-PP
|
Erecta Switch ES10-782-PP Polypropylene Vertical Level Switch
|
|
|
ES10-782-AC
|
Erecta Switch ES10-782-AC Acetyl Vertical Mount Level Switch
|
|
|
ES10-782-KR
|
Erecta Switch ES10-782-KR Kynar Vertical Mount Level Switch
|
|
|
ES10-785-PP
|
Erecta Switch ES10-785-PP Polypropylene Level Switch
|
|
|
| FLOAT
BUOYANCY IN SPECIFIC GRAVITY 1.0 |
| Float |
|
|
Medium
|
| Exposed |
|
|
Air
|
| Submerged |
|
|
Water
|
| Height |
|
|
---
|
| ELECTRICAL
RATINGS |
| Contact
rating |
0.8
AMP, 120V, 60 Hz, Resistive
0.4 AMP, 240V, 60 Hz, Resistive
3.36 VA, 240V, 60 Hz
Pilot Duty |
| DC |
1
AMP Max @ 24 VDC Resistive |
| APPLICATION
ENVIRONMENT |
| Pressure
(Hollow Float) |
100
PSI MAX @ 20°C |
Derate,
Zero @ 90°C |
| Temperature |
90°C
MAX |
---
|
| Specific
Gravity |
0.8
MIN |
Clear
Liquid |
| Position
Extreme |
30°
Cant MAX |
Off
Vertical |
| MATERIALS
OF CONSTRUCTION |
| All
Models [PP] |
Polypropylene
(Gray, blue & black) |
| All
Models [AC] |
Acetal
(Red) |
| All
Models [KR] |
Kynar,
PVDF (Natural) |
|
|
| |
| |
|
|
| |
|
|
| |
