Flow and Level Switches from Compac Engineering - Erecta Switch

Compac Engineering / Erecta Switch



Flow and Liquid Level Sensing Switches

Borrowing from the ERECTOR SET ® Concept, we’ve created a building block System of snap and screw together plastic parts that connect to generic liquid level Sensors, flow sensors, temperature sensors, pump controls and relays.

The flexibility, adaptability, quickness and cost advantage of this concept makes everything easier for the OEM equipment builder. The factorial of liquid level sensor, flow sensor and temperature sensor solutions are mind-boggling. Incredibly, stock ERECTA SWITCH solutions are in the millions. What was custom, engineering intensive, or too expensive is now quick and affordable using "out of the box" components and sets. All liquid level sensors, flow sensors and temperature sensors and accessory parts are manufactured in Polypropylene, Acetal, and Kynar for compatibility in the widest spectrum of chemical environments such as water, acids, caustics, hydrocarbons, ultra pure, and other corrosive chemicals.


  Series 5 Flow Switches
Click to enlarge!

ES5-19 Angle Body Indicating Flow Switch
ES5-20 Angle Body Flow Switch
ES5-21 Straight Body Flow Switch


Single Point Level Switches
ES10-782-PP Level Switch

ES10-782 Float Level Switch
ES10-792 Bulkhead Vertical Mount Switch
ES10-795 Shielded Level Switch
ES20-611 Heavy Duty Level Switch


ES15-650-PP Side Mounted Float Switch

ES15-650 Side Mounted Level Switch
ES10-785 Side mounted float switch

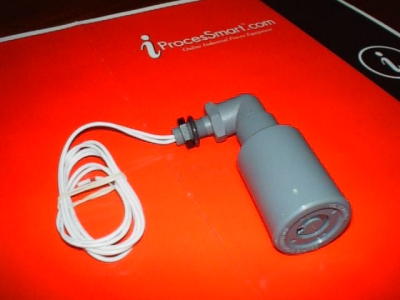

ES10-788/10-782 Shielded Side mounted Level Switch



Series 10 Custom Level Switch System
Click to enlarge!

ES10-101 1/4" bulk head mount

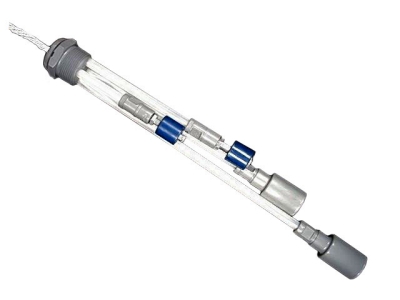

ES10-102 1-1/4" receptacle mount

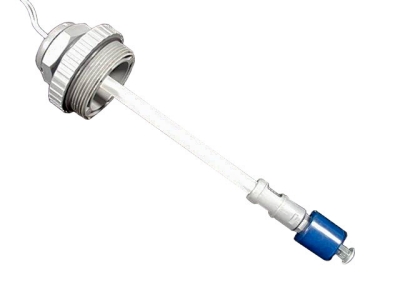

ES10-103 2" receptacle mount

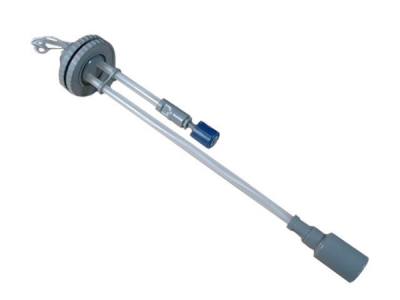

ES10-104 Flange receptacle mount

Click to enlarge!

Series 20 Pump Control Configurations
ES20-205-PP 2 Station Control Switch

ES20-201 2" mount 1 station 120 VAC pump control
ES20-202 2" mount 1 station 240 VAC pump control
ES20-203
Flange mount 1 station 120 VAC pump control
ES20-204
Flange mount 1 station 240 VAC pump control
ES20-205
2" mount 120 VAC 2 station high-low pump control
ES20-206
2" mount 240 VAC 2 station high-low pump control
ES20-207
Flange mount 120 VAC 2 station high-low pump control
ES20-208
Flange mount 240 VAC 2 station high-low pump control
